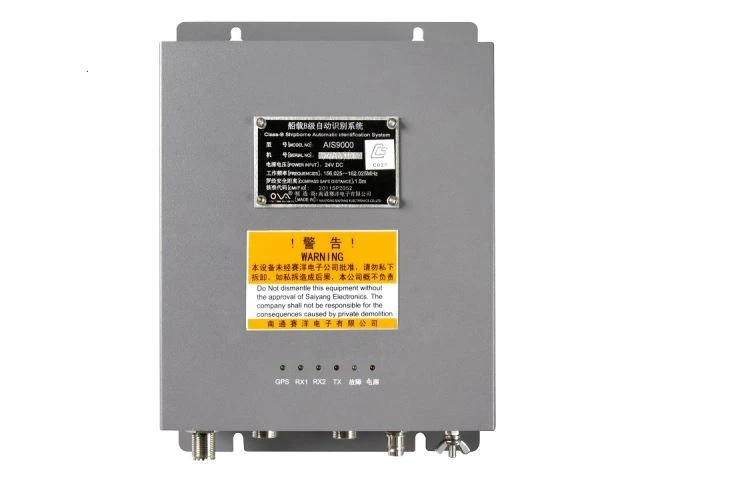

Qhov zoo tshaj plaws AIS Transponder
1.Product Description Qhov zoo tshaj plaws AIS9000 transponder txais siab heev GPS receiver nrog kev ruaj ntseg ceev thiab chav kawm, hloov tau yooj yim kev koom ua ke nrog ntau yam AIS tshaj radar thiab daim ntawv plotters, customizable wifi, bluetooth los yog network interface. 2.Product Features Professional campact thiab stylish tsev nyob ...
Khoom Taw qhia
Kev ua tau zoo tshaj plaws AIS Transponder yog siv tau yooj yim thiab tuaj yeem hloov kho wifi.
1.Product Description ntawm qhov zoo tshaj plaws AIS Transponder
Qhov zoo tshaj plaws AIS9000 transponder txais qib siab GPS receiver nrog kev ruaj ntseg ceev thiab chav kawm, hloov tau yooj yim kev koom ua ke nrog ntau yam AIS tshaj radar thiab daim ntawv plotters, customizable wifi, bluetooth los yog network interface.
2.Product nta ntawm qhov zoo tshaj plaws AIS Transponder
Professional campact thiab stylish vaj tse tsim thiab txhawb nqa dai installation.
Txaus siab rau cov qauv kev ua haujlwm rau Class-B AIS, IEC 62287-1.
Certificate los ntawm Tuam Tshoj Classification Society (CCS).
CERTIFICATED los ntawm Register of Fishing Vessel of the People's Republic of China.
3. Technical Specification ntawm qhov zoo tshaj plaws AIS Transponder
Qauv | AIS 9000 |
Fais fab mov | DC 24V (11 ~ 35V) |
Hwj chim | High-kev ua tau zoo, tag nrho kev sib cais, PWM tswj fais fab mov |
Kev teeb tsa | Desk lossis Hanging Installation |
VHF Transceiver | |
Ntau zaus | 156.025~162.025 MHz |
Channel Bandwidth | 25 KHz |
Tus naj npawb ntawm Transmitters | 1 |
Modulation | GMSK |
AIS Channel 1 | CH 87B (161.975MHz) |
AIS Channel 2 | CH 88B (162.025MHz) |
Tx Power Output | 2 Watt (33 dBm± 4.5dB) |
Rx rhiab heev | <-107 dBm@20%PER |
Rx lus | AIS Class A&B lus |
Kav hlau txais xov | 50Ω, TNC (GPS Kav hlau txais xov) |
BNC (VHF Kav hlau txais xov) | |
GPS RECEIVER (Built-in) | |
Txais Channel | 50 channels (customizable GPS + Beidou) |
Lub Sijhawm Tau Txais | Lub caij txias pib: 45s Kub pib: 15s |
GPS Qhov tseeb | ±10m(1-2m thaum tau txais Message 17) |
LED qhia | |
Lub zog (liab) | Lub zog qhib / tawm |
yuam kev (daj) | Txais lossis xa qhov yuam kev |
TX (Red) | Kev xa tawm cov ntaub ntawv AIS |
RX1 (ntsuab) | Tau txais AIS channel 1 cov ntaub ntawv |
RX2 (ntsuab) | Tau txais AIS channel 2 cov ntaub ntawv |
GPS (ntsuab) | Tau txais cov ntaub ntawv GPS |
INTERFACE | |
GPS Kav hlau txais xov Connector | BNC |
VHF Kav hlau txais xov Connector | NWS-KYA 3 |
NMEA0183(RS-422) | 1 (38400bps) |
Ib puag ncig | |
Waterproofing | IP44 |
Input/Output | -15~+55degreeC |
| Loj | 260mmx190mmx55mm |
Qhov hnyav | 2kg ua |
Standard Annex | 1.GPS Attenna |
2. Fais fab kab | |
3.Safety Fuse, Xauv Ntsia Hlau | |
4.Phau ntawv pov thawj, Warranty Card |
Packing & Shipping
Lub sij hawm xa tuaj | 2 ~ 5 hnub: DHL, FedEx, UPS, thiab lwm yam. |
Cov nqe lus them nqi | T / T, western union, paypal, alipay, irrevocable LC thaum pom |
Ntim | khoom plig lub thawv + muaj zog tiv thaiv lub thawv tsim nyog rau kev xa mus ntev |
Kev xa khoom | DHL, UPS, FEDEX, TNT, EMS, los ntawm huab cua, los ntawm hiav txwv, Suav teb, txhua txoj kev koj xav tias tsim nyog |
Cov ntaub ntawv tuam txhab
Nantong Saiyang Electronics Co., Ltd. tsim nyob rau hauv 2003, uas yog tshwj xeeb hauv kev tshawb fawb thiab tsim, tsim thiab muag khoom ntawm marine xov tooj cua sib txuas lus thiab navigation khoom. Peb lub tuam txhab yog cov cuab yeej technology, kev lag luam thiab kev muag khoom high-tech enterprise. Peb cov khoom tseem ceeb yog Ultrasonic Transducers, Marine Electronic Navigator, Echo Sounder, AIS Navigator, Electronic Chart System (ECS), thiab lwm yam. Peb cov khoom tau txais los ntawm peb cov neeg siv khoom vim muaj kev siv tshuab siab thiab ua haujlwm zoo.
Peb lub tuam txhab muaj 1500-square-meter marine navigation khoom chaw tsim khoom nrog preproduction, kuaj, manufacturing, warehouse tag nrho. Nws yog tag nrho nruab thiab nrog ua tiav lub luag haujlwm rau ntau tshaj 50 lab txhua xyoo muaj peev xwm. Peb tau dhau Tuam Tshoj CCS thiab ISO9000 pov thawj hauv xyoo 2009.
Peb lub tuam txhab muaj kev muag khoom network raws tus dej thiab hiav txwv hauv tsev thiab txawv teb chaws. Peb muaj ntau tshaj 100 tus tswv lag luam thiab cov nyiaj tau los txhua xyoo ntau dua 20 lab RMB rau kev lag luam hauv tsev. Lub caij no, peb cov khoom siv kev sib txuas lus thiab navigation kuj tau raug xa tawm mus rau kev lag luam hiav txwv rau ob qho tib si wholesalers thiab cov neeg siv kawg. Nyob rau tib lub sijhawm, peb lub tuam txhab muaj pab pawg tsim khoom nrog cov txheej txheem zoo los xyuas kom meej cov khoom zoo.
Peb Qhov Kev Pabcuam
Kev pab txhawb nqa
Peb lub tuam txhab muaj peb tus kws tshaj lij thiab kaum ob tus kws tshaj lij nrog cov thev naus laus zis siab, muaj kev tshawb fawb tshwj xeeb tshaj lij kev paub thiab muaj peev xwm txhim kho. Lub caij no, peb lub tuam txhab tau koom tes nrog qee lub koom haum ntawm kev kawm qib siab thiab kev tshawb fawb & thev naus laus zis los xyuas kom muaj kev ruaj ntseg ntawm kev tshawb fawb thiab kev tsim kho kev ua haujlwm.
